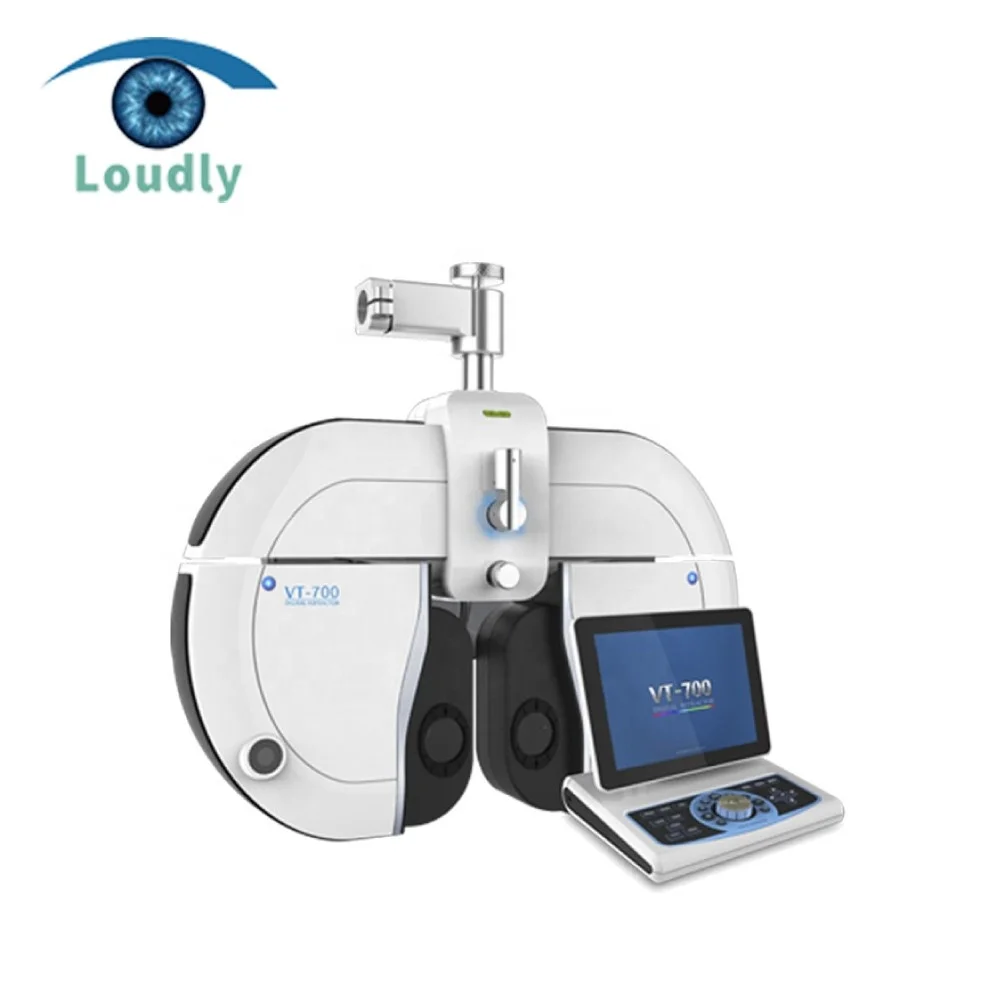

Loudly brand higher quality Auto Phoropter VT-700

Features



1. Contour design is elegant with sphere fast rotating disk, enabling the rapid adjustment of 3.00m-1.

2. The unique Cross Cylinder design, convenient and flexible.

3. Can be easily used to measure near visual acuity.

Specifications



Sphere
-29.00D~+26.75D (0.12D/0.25D/0.50D/1.00D//2.00/3.00D)
Cylinder
0.00D~+8.75D (0.25D/0.5D/1D/2D/3D steps)
Axis angle
0~180° (1°/5°/30°/45°steps)
Pupillary Distance
Distant range:45~75mm (0.5/1.00mm steps)
Close range: 45~75mm 0.5/1mm steps
Working Distance
35-70cm (step: 5cm)
Rotary Prism
0~20 (0.1/0.2/0.5/1/2 steps)
Cross Cylinder Lens
Cross cylinder 0.25D, cross cylinder 0.50D
Plane Retinoscope
+1.50D(67cm) +2.00D(50cm)
Auxiliary Lens
Pinhole Lens
1.0mm
Maddox
Right eye (horizon), left eye (vertical)
Red and green lens
RL(Right eye),GL(Left eye)
Polaroid
Right eye (135°,45°); Left eye (45°,135°)
Prism
Right 6 BU, Left 10BI
Solid Suprachiasmatic cylinder
Cross Cylinder ±0.50D Axis=90°
Visual degree
32°
Power Supply
AC110V-240V (50/60Hz), 90VA
Net Weight
7.1kg
